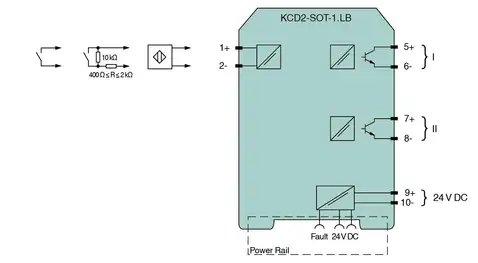

Pepperl+Fuchs KCD2-SOT-1.LB Switch Amplifier

• 1-channel signal conditioner
• 24 V DC supply (Power Rail)
• Dry contact or NAMUR input
• 2 passive transistor outputs
• Usable as signal splitter (1 input and 2 outputs)
• Reversible mode of operation
• Line fault detection (LFD)
• Housing width 12.5 mm
• Up to SIL 2 (SC 3) acc. to IEC/EN 61508
