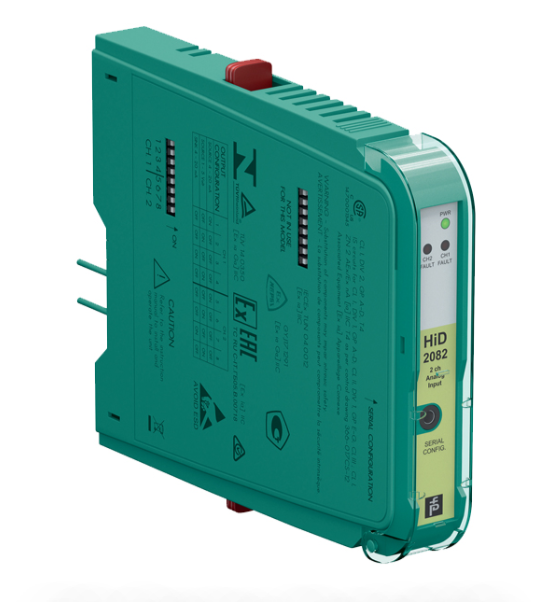

Pepperl+Fuchs HiD2082 Temperature Converter

This isolated barrier is used for intrinsic safety applications. This device accepts thermocouples (TC), millivolts, potentiometers, or resistance temperature detectors (RTD) from a hazardous area and converts them to an isolated, linearized analog output in the safe area. The outputs can be selected as a current source, current sink, or voltage source with DIP switches on the side panel. The device can also be configured as a signal splitter. Line fault detection of the field circuit is indicated by a red LED and an output on the fault bus. The fault conditions are monitored via a Fault Indication Board. The device is easily configured by the use of the PACTware configuration software. This device mounts on a HiD Termination Board.

• 2-channel isolated barrier
• 24 V DC supply (bus powered)
• Thermocouple, RTD or potentiometer input
• Usable as signal splitter (1 input and 2 outputs)
• Linearized output 4 mA ... 20 mA, sink/source or 1 V ... 5 V
• Sensor breakage detection
• Configurable by PACTware
• Line fault detection (LFD)
• Up to SIL 2 acc. to IEC 61508/IEC 61511
