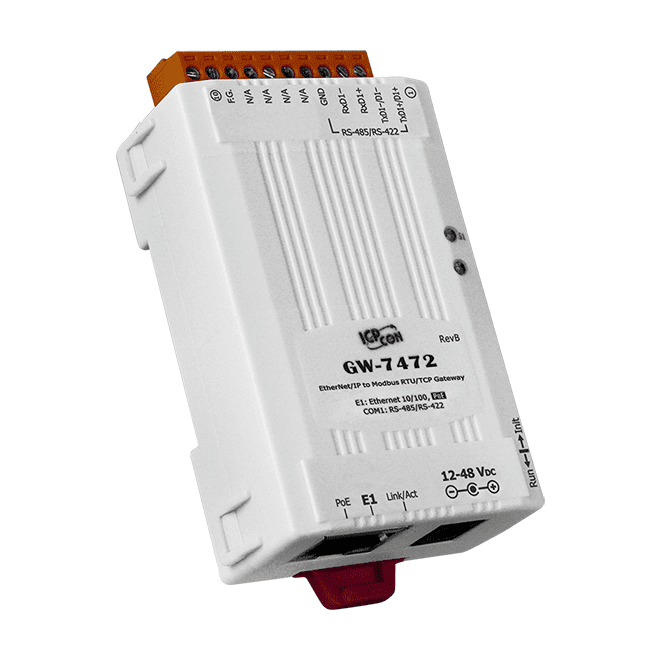

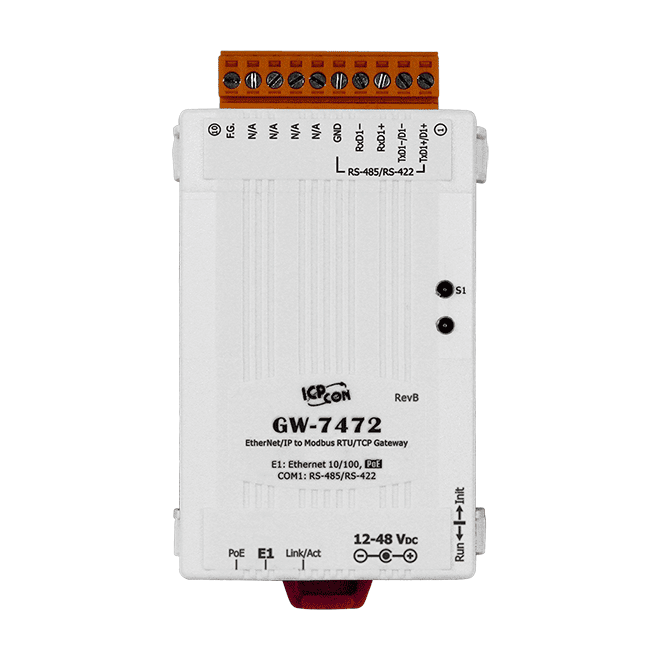

ICP-DAS GW-7472 CR

EtherNet/IP to Modbus RTU/TCP Gateway
برند:ICP-DAS
0
شناسه کالا GW-7472 CR

جهت اطلاع از قیمت و موجودی تماس بگیرید.

توضیحات
  • ICP-DAS GW-7472 CR
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • Tiny form-factor and low power consumption
  • Ethernet Protocol: EtherNet/IP adapter
  • Maximum number of connections for Explicit Messages: 6
  • Maximum number of connections for Implicit Messages: 1
  • Supported I/O connection methods:
    • Transport and trigger: Exclusive-Owner, Cyclic
    • Originator to Target Type: POINT2POINT
    • Target to Originator Type: POINT2POINT, MULTICAST
  • EtherNet/IP Input/Output command data size: maximum 500 bytes
  • Modbus Protocol: Modbus RTU Master
  • Maximum support 30 Modbus RTU commands
  • Maximum support 10 Modbus TCP servers
  • Maximum support 8 Modbus commands for each one Modbus TCP server
  • Supported Modbus RTU Function Codes: 01,02,03,04,0F,10
  • Maximum data size of one Modbus command: 240 bytes
  • www.icpdas.com/en/product/GW-7472
