ایزولاتور ضد انفجار جی ام آی GMI D1092D

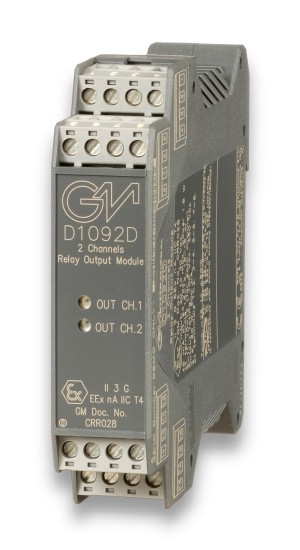

SIL 3 Relay Output Module DIN-Rail Model D1092D

The dual channel DIN Rail Relay Output, D1092D, is relay modules suitable for the switching of safety related circuits, up to SIL 3 level according to IEC61508:2010 Ed. 2, for high risk industries. It provides isolation between input and output contacts. D1092D provides 2 SPST contact for normally energized loads and 2 SPST contact for normally de-energized loads. When the relay is energized, the contacts are closed. When the relay is de-energized, the contacts are open. Compatibility with specific DO cards with pulse testing needs to be verified. This relay module is not suitable for low-current consumption applications (system-to-system signalling, driving LEDs, etc.).

gminternational.com/?fuseaction=skdprodotti&IDProdotto=D1092D
