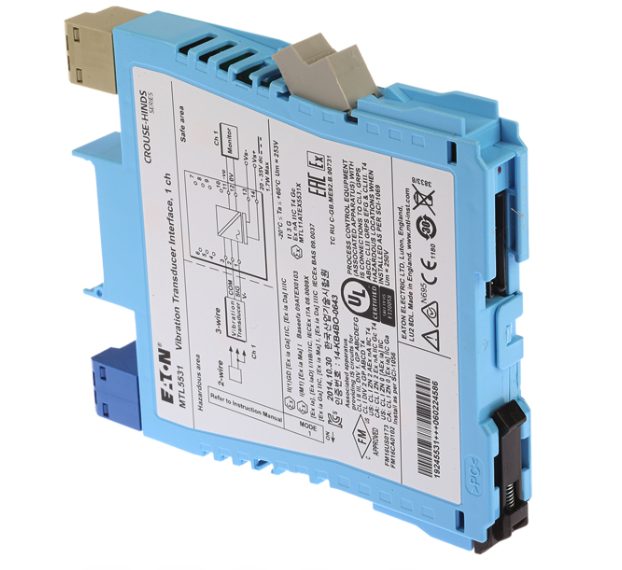

MTL5531, Instruments ,Vibration Transducer Interface

• Manufacturer: MTL Instruments

• Product No. : MTL5531

• Product Type: Vibration Transducer Interface

• Number of channels: One

• Sensor type: 2- or 3-wire vibration transducer

• Location of signal source: Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location

• Hazardous-area input: Input impedance (terminals 2 & 3): 10kΩ

• Transducer supply current, 2-wire: 3.3mA (nom.) for 2-wire sensors, user selectable by switch

• Signal range: Minimum –20V, maximum –0.5V

• DC transfer accuracy at 20°C: <±50mV

• LED indicator: Green - power indication

• Supply voltage: 20 to 35V dc

• Maximum current consumption (10mA transducer load) : 65mA at 24V

• Maximum power dissipation within the unit: 1.33W

• Weight: 0.11 Kg
