Yokogawa VP6H4410-V11N03 Control Drawing Status Display Package

GENERAL

The GS covers the specifications of the VP6H4410 Control Drawing Status Display Package to visually check the control process of a field control station (FCS) on the human interface station (HIS).

FUNCTION SPECIFICATIONS

The package displays the Control Drawing View. On the view is displayed drawing status (ex. data and alarm status) created and edited by the FCS control drawing builder and status display builder. Users can visually check control process status and related data.

OPERATING ENVIRONMENTS

Hardware Requirement Conforms to operating environment of VP6H1100 Standard Operation and Monitoring Function Software Requirement Conforms to operating environment of VP6H1100 Standard Operation and Monitoring Function. Necessary Software: VP6H1100 Standard Operation and Monitoring Function

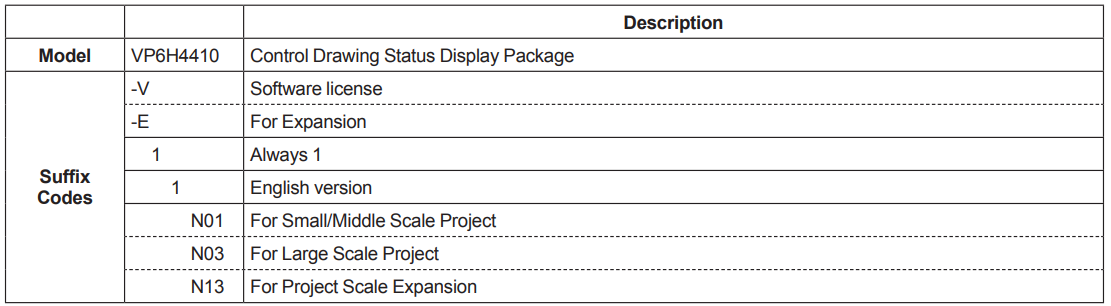

MODEL AND SUFFIX CODES

https://web-material3.yokogawa.com/GS33J05H50-01EN.pdf
