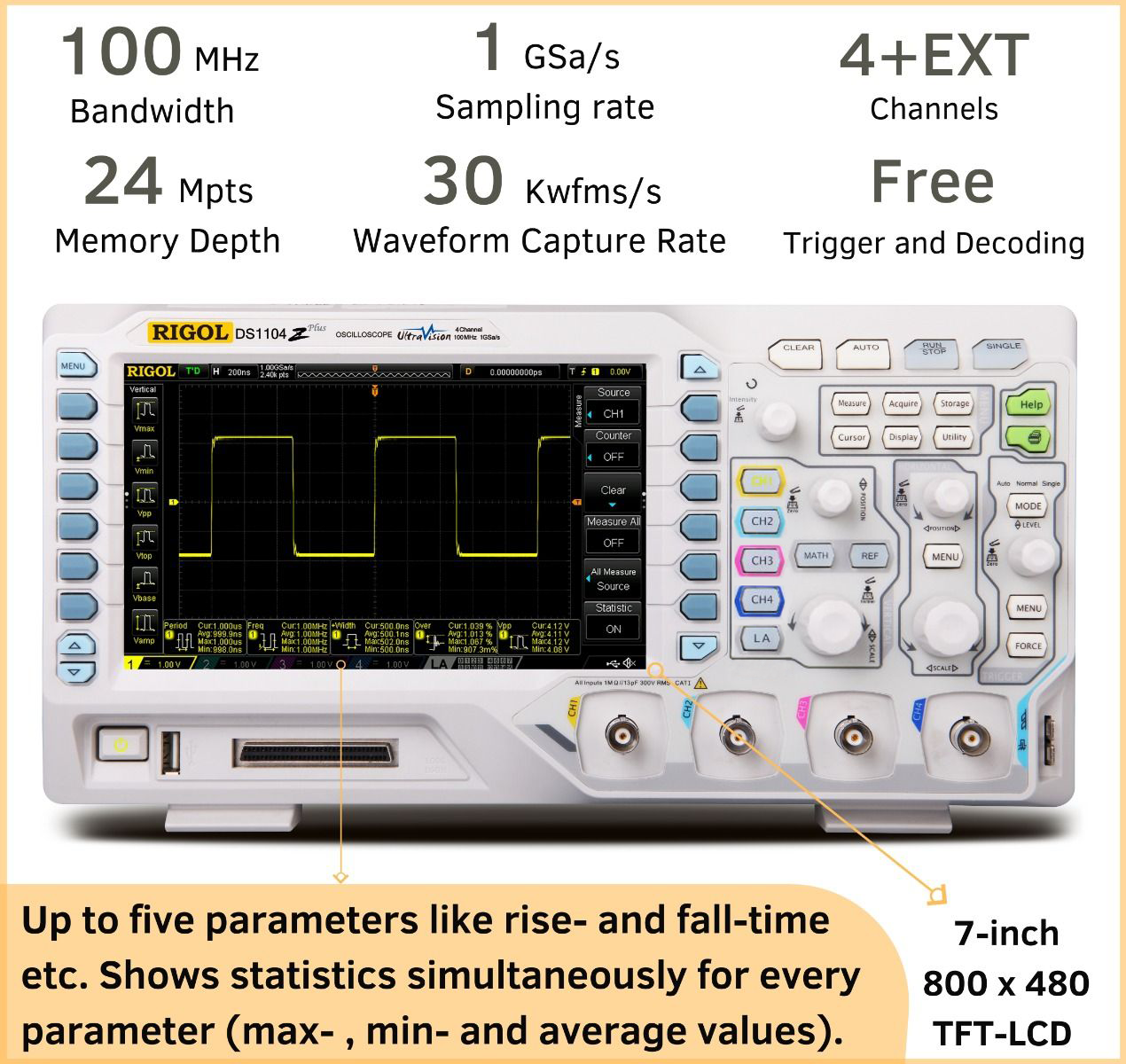

RIGOL Digital Oscilloscope DS1104Z

Analog channel bandwidth: 100 MHz, 4 analog channel, 16 digital channel, 1 GSa/s, Memory depth up to 24 Mpts, Up to 30,000 wfms/s waveform capture rate, Trigger and Decoding options are permanent free installed, UltraVision, USB Host&Device, LAN (LXI), AUX, 7-inch WVGA (800x480) TFT LCD Display,EU Cable

Get all options for free with the purchase of a new DS1000Z/MSO1000Z oscilloscope! All licenses are preinstalled! Options: SD-DS1000Z Serial Decoder, AT-DS1000Z Advanced Trigger, MEM-DS1000Z Memory Option, REC-DS1000Z Record-Module!

• Analog channel bandwidth: 100 MHz
• 4 analog channels, 16 digital channels
• Real-time sample rate up to 1 GSa/s
• Memory Depth up to 24 Mpts
• Up to 30,000 wfms/s waveform capture rate
• Up to 60,000 frames hardware real-time waveform recording and playback functions
• Innovative "UltraVision" technology
• Various trigger and bus decoding functions
• Low noise floor, vertical scale range: 1 mV/div to 10 V/div
• Various interfaces: USB Host&Device, LAN (LXI), AUX
• Compact size, lightweight, easy to use
• 7-inch WVGA (800x480) TFT LCD, intensity graded color display
• Logic probe RPL1116 need to be extra purchased for the MSO function.
