فانکشن ژنراتور ریگول Rigol DG1022Z

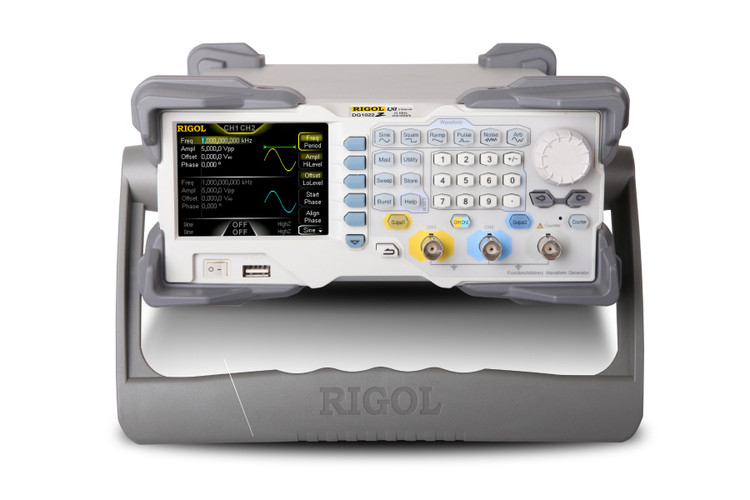

RIGOL Function Generator DG1022Z

25MHz, 2CH, 200MSa/s, 14bits, 2Mpts Arbitrary Memory Depth, 7digits/s Frequency Counter,EU Cable

• SiFi (Signal Fidelity) for 100% waveform replication
• 2Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform length
• Standard 2 full functional independent channels
• ±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitter
• Built-in 8 orders harmonics generator
• Built-in 7 digits/s counter up to 200MHz
• 160 built-in pre-edited waveforms
• Intuitive arbitrary waveform editing software
• Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM

DG1000Z series function/arbitrary waveform generator is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter. As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production, test and etc.
