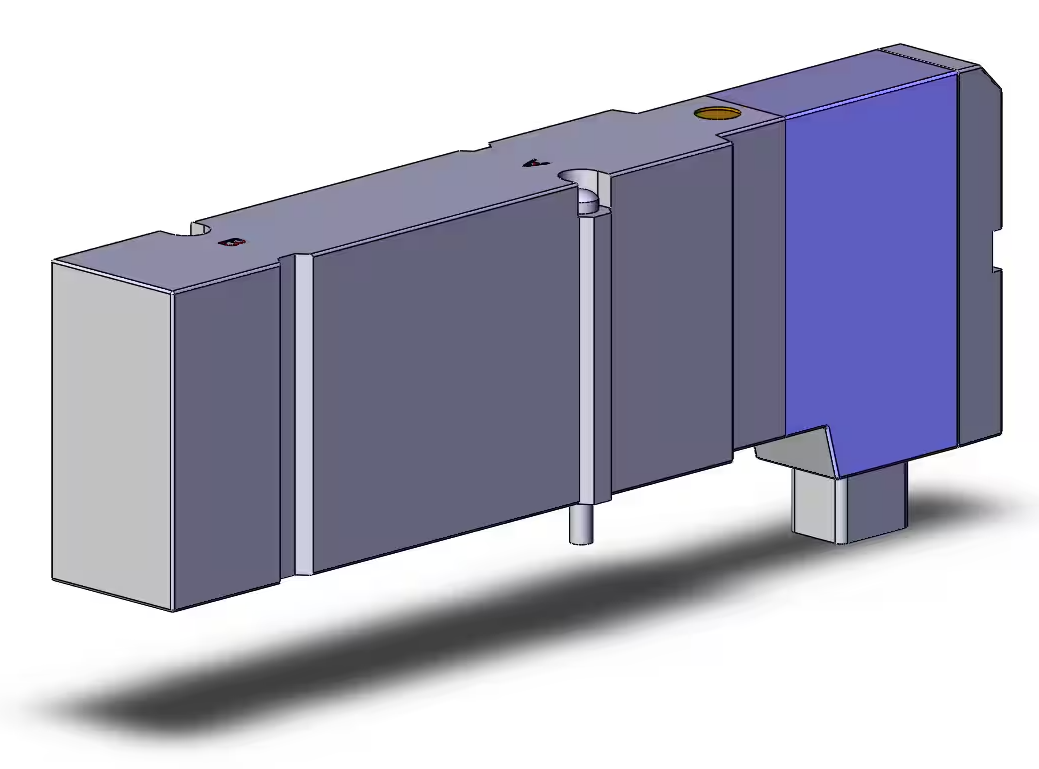

SMC SV2100R-5FUD

SMC SV2100R-5FUD valve, sgl sol, plug-in, SV2000 SOLENOID VALVE, 5-PORT

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.

• Fluid: air
• Operating pressure range: -100kPa to 0.7MPa
• Response time ms (at 0.5MPa): 33 or less
• Coil rated voltage: 12, 24VDC
• Ambient and fluid temperature: -10 to 50 C
• Enclosure: IP67 (based on IEC529)
