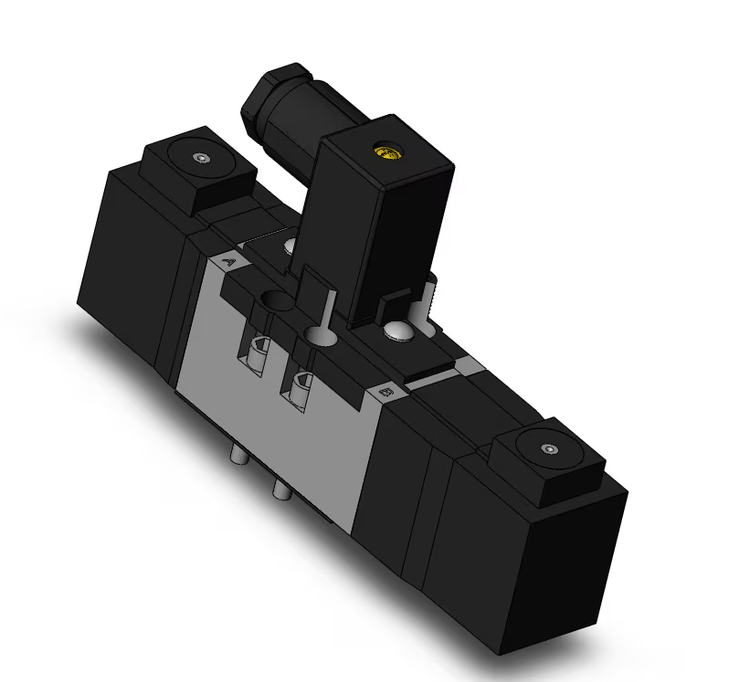

SMC VS7-6-FHG-D-3N

SMC VS7-6-FHG-D-3N valve sol, VS7-6 SOL VALVE 4/5 PORT

Dimensions of SMC's VS7 series conform to ISO interface sizes 1 and 2. The pilot operated metal seal design allows the valve to be used with non-lube dry air and still maintain a long life. The VS7 is available in 2 or 3 position, double or single action. Manifolds are available with a large variety of functions and piping configurations.

• Size 1, ISO interface solenoid valve
• Fluid: air/inert gas
• Operating pressure: 0.1 to 1.0MPa
• Single or double solenoids
• Options include indicator light, direct manual override, wedge packing style, individual pilot EXH, surge voltage suppressor
• www.smcpneumatics.com/VS7-6-FHG-D-3N.html
